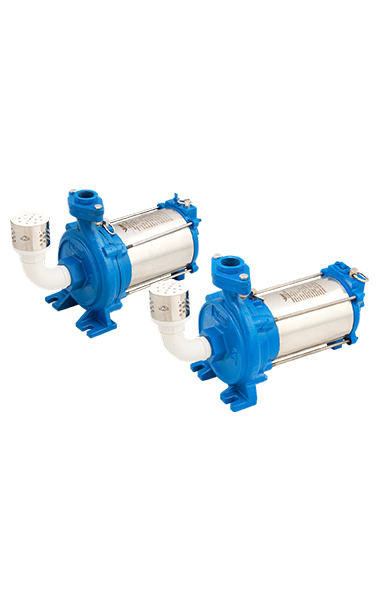

Domestic Openwell Submersible Pump

4" Oil Filled Borewell Submersible Pumpsets
  • Domestic and Community Water Supply
  • Gardening and Small Farm Irrigation
  • Water Fountains
  • Construction Site
  • Water Supply to Overhead Tanks

Specification

  • Range 0.50 HP to 2.00 HP
  • Head Range up to 46 meters
  • Discharge capacity up to17400 LPH
  • Operational Voltage Range — Single Phase 160v to 240v
  • Pre-filled with anti-corrosive liquid to avoid jamming problem
  • CED coated Cl Parts to avoid rusting for long time.
  • Digital Display Panel Board

Salient Features

  • Motor fitted with anti-friction pre-lubricated angular contact bearings suitable for axial/radial load and longer life of motor.
  • High operating efficiency of pumpset result into High water discharge plate and lower power consumption.
  • Outer casing of the motor is constructed completely with Stainless Steel, which reduces corrosion and gives a good overall appearance to the motor.
  • The motors are compact and weigh substantially less, which facilitates transportation storage & installation.
  • The electric cable of the motor constitutes three-wire removable cable with watertight connector. This facilitates the changing of the cable, if required, without dismantling the motor.
  • The motors are filled with special food non-toxic dielectric oil, which lubricates the ball bearing and axial thrust bearings. It also offers insulation and thermal properties which increases the reliability & working life of the motor.
  • Pumps available with non-return valve to reduce the backpressure of water when they are switched-off.
  • Impeller and Bowl are accurately machined by CNC machine to ensure high dimension accuracy.
  • The motor are designed for a wide voltage range of operation and are suitable for installation in areas experiencing wide voltage fluctuations.
  • All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
  • The Pumpsets are compact and slim and can be easily installed in narrow wells.

Material of Construction

Motor Body Stainless Steel SS 202
Front/Rear Housing Cast Iron FG 200
Casing Cast Iron FG 200
Impeller Glass Filled Noryl / Cast Iron Noryl/FG 200
Stamping Electrical Sheet Steel -
Rotor Lamination & Die cast aluminum (Electrical Sheet steel) -
Motor Shaft Chrome Steel 12 CR 13
Winding wire Poly wrap Copper conductor Electro grade copper
Bearing Brush Leaded tin bronze LTB 4
Cable PVC Insulated & PVC sheathed Flat type -
Breather diaphram Nitrile Rubber -

Features

  • Wide Voltage Design

    The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage.

  • Lightweight and Compact Design

    Constructed with special grade engineering materials, compact designs for ease of handling and installation.

  • Dynamically Balanced Rotating Parts

    Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.

  • Replaceable Wearing Parts

    All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.

  • Easy Maintainable Designs

    Easy maintainable design and better interchangeability of components so that the pump can be serviced even at remote locations by semi-skilled technicians.

  • CED – Cathodic Electro Deposition

    CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.

  • High Efficiency And Energy Saving Design

    Innovative design manufactured at state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.

  • Advanced Water Cooled Motors Designs

    The motor is filled with potable water which protects it from overheating and facilitates smoother and trouble free operation for years.

Product Application
Sprinkler & drip irrigation Civil & Industries Fire fighting system
Agriculture
Gardening Hospitality
