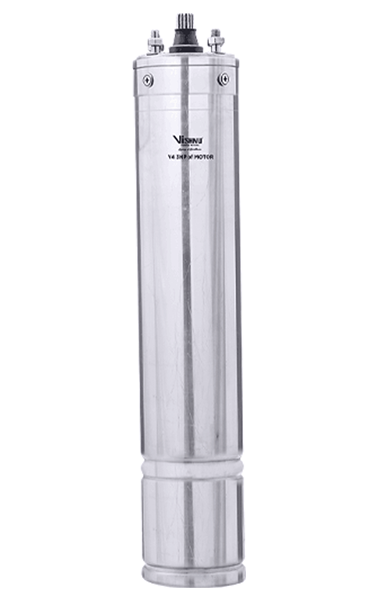

V4 OIL FILLED MOTOR

V4 OIL FILLED MOTOR
  • Domestic and Community Water Supply
  • Gardening and Small Farm Irrigation
  • Water Fountains
  • Construction Site
  • Water Supply to Overhead Tanks
  • Series IVSP6WMF/VSP6WMFH/VSP6WRF/ VSP6WRFH series
  • BrochureDownload Here

Description

Vishnu has designed and developed the latest technology rewindable oil filled submersible motors for its 4" submersible pumpsets as per IS: 8034 Standard which can be used in the field of advanced technology.

All parts are manufactured and fitted precisely using CNC machine that imparts excellent mechanical strength and reliability.

Salient Features

  • Motors are designed using enamelled copper wire instead of PVC insulated copper wire. Due to this the design is highly efficient reducing power consumption & thereby reducing cost of operation.
  • The motors are filled with special food non-toxic dielectric oil, which lubricates the ball bearing and axial thrust bearings. It also offers insulation and thermal properties which increases the reliability & working life of the motor.
  • Dynamically Balancing Rotating part to ensure minimum noise and vibration free operation.
  • The motors are compact and weigh substantially less, which facilitates transportation storage & installation.
  • High operating efficiency of pumpset result into High water discharge plate and lower power consumption.
  • The motor are designed for a wide voltage range of operation and are suitable for installation in areas experiencing wide voltage fluctuations.

Material of Construction

Motor Body Stainless Steel
Stator Vacuum Impregnated with class F insulation
Rotor Aluminum pressure die-cast / Copper Rotor
Windings Enamelled copper wire with class F insulation
Cable Sealing Arrangement Designed so that no bore well water with sand can enter the motor.
Bearings Heavy duty angular contact bearing / ball bearing
Pressure Equalizing Diaphragm Adequately sized to accommodate expansion of oil inside the motor and prevent loss of oil
Seal Mechanical Seal

Features

  • Wide Voltage Design

    The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage.

  • Lightweight and Compact Design

    Constructed with special grade engineering materials, compact designs for ease of handling and installation.

  • Dynamically Balanced Rotating Parts

    Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.

  • Replaceable Wearing Parts

    All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.

  • Easy Maintainable Designs

    Easy maintainable design and better interchangeability of components so that the pump can be serviced even at remote locations by semi-skilled technicians.

  • CED – Cathodic Electro Deposition

    CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.

  • High Efficiency And Energy Saving Design

    Innovative design manufactured at state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.

  • Advanced Water Cooled Motors Designs

    The motor is filled with potable water which protects it from overheating and facilitates smoother and trouble free operation for years.

Product Application
Domestic and community water supply
Water supply for high rise building
Gardening and small farm irrigation
Construction site
Ground water supply to water works
