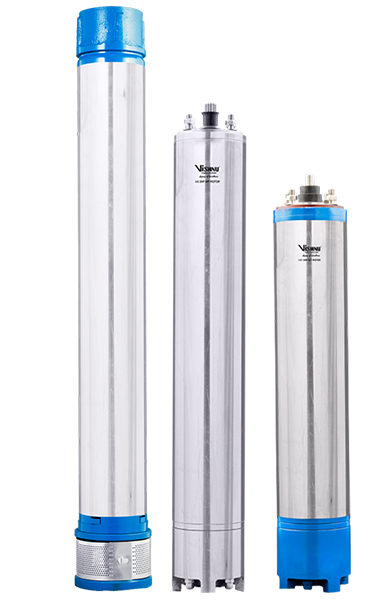

V4 Borewell Water Filled Submersible Pumpsets

V4 Borewell Water Filled Submersible Pumpsets
  • Domestic and Community Water Supply
  • Gardening and Small Farm Irrigation
  • Water Fountains
  • Construction Site
  • Water Supply to Overhead Tanks

Description

Vishnu’s submersible pumpsets are manufactured as per IS: 8034 Standard which can be used in the field of advanced technology. All parts are manufactured and fitted precisely using CNC machine that imparts excellent mechanical strength and reliability. The electrical design of Vishnu’s Motors has been done with enamelled/ poly wrapped Coated winding to improve efficiency and reduce electrical consumption.

Salient Features

  • All components are manufactured from materials as per Indian Standard Specifications. They are precisely machined on modern machines, Including CNC machines to give you years of reliable operation.
  • Motor fitted with anti-friction pre lubricated angular contact bearings suitable for axial/radial load and longer life of motor.
  • Motor is designed to operate under large voltage fluctuations and available in CSR/CSCR.
  • Motors have well designed sleeve and thrust bearings for longer life.
  • High operating efficiencies of pumpset result into high water discharge rate and lower power consumption.
  • All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
  • Pumps available with non-return valve to reduce the back pressure of water when they are switched-off. Impeller and Bowl are accurately machined by CNC machine to ensure high dimension accuracy.
  • Superior designed Noryl impellers and diffusers give higher hydraulic performance and greater efficiency and provide higher resistance against wear and tear through sand and other impurities.
  • The Pumpsets are compact and slim and can be easily installed in narrow wells.

Material of Construction

Motor Body Stainless Steel
Stator Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provided to protect motor windings.
Rotor Epoxy Coated for corrosion resistance & dynamically balanced for vibration free smooth operation.
Windings PVC / Polyester insulted, water cooled
Bushes Leaded Bronze Water Lubricated, having high load bearing capacity.
Thrust Bearings Special self-aligning and water lubricated to withstand high axial thrust loads.
Pressure Equalizing Diaphragm Adequately sized to accommodate expansion of water inside the motor and prevent loss of cooling water.
Impeller High quality abrasion resistant Noryl/Stainless Steel & dynamically balanced.
Bowl High grade Noryl/Cast Iron
Wear Rings High quality abrasion resistant P.U./Rubber
Shaft Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances.
Suction Casing Provided with perforated Stainless Steel Strainer and adequately sized to allow the water to be sucked in with minimum friction.
Cable Sealing Designed so that no borewell water with sand can enter the motor.

Features

  • Wide Voltage Design

    The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage.

  • Lightweight and Compact Design

    Constructed with special grade engineering materials, compact designs for ease of handling and installation.

  • Dynamically Balanced Rotating Parts

    Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.

  • Replaceable Wearing Parts

    All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.

  • Easy Maintainable Designs

    Easy maintainable design and better interchangeability of components so that the pump can be serviced even at remote locations by semi-skilled technicians.

  • CED – Cathodic Electro Deposition

    CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.

  • High Efficiency And Energy Saving Design

    Innovative design manufactured at state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.

  • Advanced Water Cooled Motors Designs

    The motor is filled with potable water which protects it from overheating and facilitates smoother and trouble free operation for years.

Product Application
Domestic and community water supply |
Domestic and community water supply | Rural water supply Gardening and small farm irrigation
Construction site Water supplies for high rise building
Hospitality
