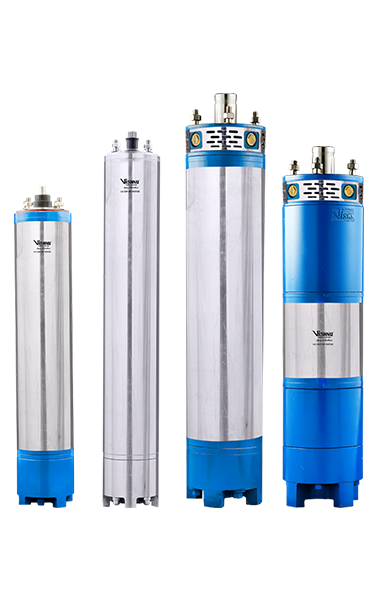

V4 & V6 WATER FILLED MOTOR

V4 & V6 WATER FILLED MOTOR
  • Domestic and Community Water Supply
  • Gardening and Small Farm Irrigation
  • Water Fountains
  • Construction Site
  • Water Supply to Overhead Tanks
  • Series IVSP6WMF/VSP6WMFH/VSP6WRF/ VSP6WRFH series
  • BrochureDownload Here

Description

Vishnu's Submersible motors are made out of premium quality of raw material and workmanship to ensure that pump is energy efficient, reliable and has a very long service life with negligible repairing.

Vishnu Submersibles Pumpsets are manufactured as per IS : 8034 & IS : 9283 strict quality control for year of efficient & reliable operation.

Salient Features

  • All components are manufactured from materials as per Indian Standard Specifications. They are precisely machined on modern machines, Including CNC machines to give you years of reliable operation.
  • The motors are designed to start at low voltage & working in a wide voltage fluctuation.
  • Induction motors are easily re-windable using multi layer PVC insulated wire for better reliability.
  • Motor filled with water gives better cooling to winding as well as bush.
  • Self-aligned carbon Stainless steel thrust bearing which withstands high axial thrust load in water lubrication.
  • High operating efficiency of pumpset result into High water discharge plate and lower power consumption.
  • Motor Stator & Rotor are vaccum impregnated and coated properly to ensure corrosion resistance.
  • All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
  • High operating efficiencies of pumpset result into high water discharge rate and lower power consumption.
  • Non-magnetic, corrosion-resistant high-grade stainless steel stator body.
  • Water-filled motor is available in capacitor start and run design.
  • The Pumpsets are compact and slim and can be easily installed in narrow wells.

Material of Construction

Motor Body Stainless Steel Mild Steel
Stator Vacuum Impregnated and epoxy coated for corrosion resistance. Thick end laminations are provided to protect motor windings.
Rotor Vacuum impregnated, shot blasted & coated with poly urethene colour for corrosion resistance & dynamically balanced for vibration free smooth operation
Windings PVC / Polyster insulated, water cooled
Journal Bearings Leaded Bronze / Nitrile Rubber and Stainless Steel, Water Lubricated, having high load bearing capacity.
Thrust Bearings Carbon Vs. Steel segment special self-aligning and water lubricated to withstand high axial thrust loads.
Pressure Equalizing Diaphragm Adequately sized to accommodate expansion of water inside the motor and prevent loss of cooling water.
Cable Sealing Arrangement Designed so that no borewell water with sand can enter the motor.

Features

  • Wide Voltage Design

    The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage.

  • Lightweight and Compact Design

    Constructed with special grade engineering materials, compact designs for ease of handling and installation.

  • Dynamically Balanced Rotating Parts

    Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.

  • Replaceable Wearing Parts

    All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.

  • Easy Maintainable Designs

    Easy maintainable design and better interchangeability of components so that the pump can be serviced even at remote locations by semi-skilled technicians.

  • CED – Cathodic Electro Deposition

    CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.

  • High Efficiency And Energy Saving Design

    Innovative design manufactured at state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.

  • Advanced Water Cooled Motors Designs

    The motor is filled with potable water which protects it from overheating and facilitates smoother and trouble free operation for years.

Product Application
Irrigation in horticulture & agriculture
Domestic and community water supply
Sprinkler and drip irrigation
Rural water supply
Ground water supply to water works
